Basic Edition: Let’s Take a Look at Actual Data
Opening the Cover
Next, press the button on the top of the simulator to open the cover of the smartphone and the Web serverA computer where web page data is stored.. You will see the internal workings of the smartphone and the Web serverA computer where web page data is stored..
Open the cover
With the cover open, enter http://example.jp/joho1/internet.html into the address barThe URL input field of a web browser. again and observe the flow of information.
Access the URL above

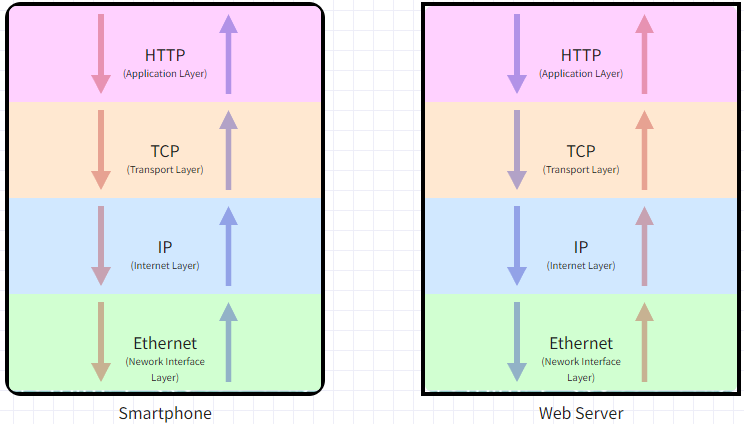

HTTP
(Application LAyer)
</>
TCP
(Transport Layer)
</>
</>
IP
(Internet Layer)
</>
</>
Ethernet
(Nework Interface Layer)
</>
Smartphone
HTTP
(Application LAyer)
</>
TCP
(Transport Layer)
</>
</>
IP
(Internet Layer)
</>
</>
Ethernet
(Nework Interface Layer)
</>
Web Server
